I am glad to see that the BALD Engineering ALD News Blog is growing in Asia. This is first month when Japan, South Korea, China and Taiwan were all on the Top 10.
Wednesday, November 30, 2016
Tuesday, November 29, 2016
4th Int. Atomic Layer Etching Workshop ALE2017 in Denver USA July 15-17
Here is a message and update from Steve George and Keren Kanarik Co-Chairs of ALE2017:
ALE2017 will be held in conjunction with the 17th International Conference on Atomic Layer Deposition in Denver, Colorado. ALE2017 is scheduled on July 15-17, 2017. Preliminary details are posted at: https://aldconference.avs.org/.
ALE2017 will embrace many topics including:
ALE2017 will be held in conjunction with the 17th International Conference on Atomic Layer Deposition in Denver, Colorado. ALE2017 is scheduled on July 15-17, 2017. Preliminary details are posted at: https://aldconference.avs.org/.
ALE2017 will embrace many topics including:
- Plasma and/or energy-enhanced ALE
- Gas-phase and/or thermal ALE
- Solution-based including wet ALE
- Selective ALE
- ALE hardware, diagnostics, & instrumentation
- Modeling of ALE
- Atomic layer cleaning (ALC)
- Integration of ALD + ALE
- Applications for ALE
- Rick Gottscho (Lam Research)
- Mark Kushner (Univ. Michigan)
- Masanobu Honda (Tokyo Electron)
- Nathan Marchack (IBM)
- Jesus Del Alamo (MIT)
- Jane Chang (UCLA)
- Stacey Bent (Stanford Univ.)
- Chuck Winter (Wayne State Univ.)
- Younghee Lee (Univ. Colorado)
ALE2017 will begin with a poster session in the evening on July 15. The plenary talks for both ALD2017 and ALE2017 are on the morning of July 16. Rick Gottscho, Executive Vice President of Global Products from Lam Research, will be presenting the ALE Plenary talk. The invited and contributed talks for ALE2017 will continue on July 16-17. In addition, there will be a networking area devoted to ALE next to the ALE posters
The abstract submission deadline for ALE2017 is February 17, 2017.
The abstract submission deadline for ALE2017 is February 17, 2017.
Welcome to the new web page of ALD Lab Saxony
ALD Lab Saxony is a division of Cool Silicon and
combines several universities and resarch institutes to the largest
German ALD cluster. Please explore our website to discover the world of
Atomic Layer Deposition and to receive informations, news and
announcements from the ALD community.
Please have a look on our news blog and our events section for latest information on recent activities and upcoming events.
Picosun wants you to join the ALD Powerhouse!
Picosun is the leading supplier of high quality Atomic Layer Deposition
(ALD) thin film coating solutions for industrial production. Due to the
growing interest towards ALD and co-operation with Picosun throughout
the global industrial scene, we are constantly seeking new persons to
complete our highly motivated and skillful organization. We offer you a
challenging and versatile job in a dynamic, fast developing high-tech
company with a supportive team and active, positive spirit.
Come to work in Picosun’s global family! We are happy to receive applications any time. Please send your open application and CV to info@picosun.com.
At the moment we are hiring for the following positions (click the titles to read more):
PICOSUN EUROPE (GERMANY)
General managerRegional service manager
PICOSUN CHINA
General managerPICOSUN USA
Sales managerRegional service manager
PICOSUN FINLAND (HQ) – KIRKKONUMMI, MASALA
Process engineersField service engineers
Production workers
Project manager
Product manager
Mechanical designers
Purchasing manager
Production manager
Photo, Björn Engström, Oravais, Ostrobothnia, Finland.
Friday, November 25, 2016
The ALD Passivation Market for Solar Cells is Evolving
Levitech Reports: Almere, the Netherlands – November 23, 2016 – The ongoing evolution
from Al BSF cells to new PERC and n-type cell concepts will continue in
the coming years. This production shift is made possible by the
development of high volume capable Al2O3 deposition systems. The
intrinsic properties of ALD are a perfect match with the requirements
from cell design and technological point of view, both for PERC as well
as n-type cells. Additionally, ALD systems result in a proven CoO
benefit as compared to PECVD due to the increased maintenance interval
and its beneficial effect on cell efficiencies.
从 Al BSF 电池到新型 PERC 和 n
型电池概念的持续演进将在未来的几年 中继续保 持下去。高產量 Al2O3 沉积系统 的发展推动了这一生产转变。从电池的设计 和 技 术 的 角 度
来 讲 ,无 论 是 PERC 还是 n 型电池,ALD 的固有属性可谓正应所需。除 此 之外,鉴于 ALD 系统可以增加维修间隔
并改善电池效率,它还能够带来 PECVD 不 具备的实际 CoO 益处。
Novel high-speed ALD outperforms current techniques for making displays
The Holst Centre in the Netherlands reports: Fast and industry-compatible, spatial atomic layer deposition (sALD) promises to revolutionize production of thin-film displays. Now researchers at Holst Centre have shown that sALD can deliver semiconductor layers with better performance than physical vapor deposition (PVD) at the same – and potentially even higher – throughputs. An easily scalable, atmospheric-pressure process, sALD could soon become the preferred method for creating large-area thin-film and flexible devices.
A key step in producing next-generation ultra-high definition) displays is the creation of a highly uniform layer of an amorphous oxide semiconductor such as indium-gallium zinc oxide (IGZO). Today, this is typically done using a PVD technique known as sputter deposition. Sputtering requires expensive vacuum equipment and can also prove difficult to correctly control material composition and thickness over large areas. This results in variable transistor performance, particularly in thin film applications such as displays.
Now Holst Centre has shown that sALD offers an industry-compatible alternative which improves display performance and at the same time could cut production costs. The team has used the technique to create semiconductor layers with charge carrier mobilities (a key measure of semiconductor performance) of 30 to 45 cm2/Vs. This compares to typical mobilities around 10 cm2/Vs for sputtering. The sALD layers also exhibited low off current, switch-on voltages around 0 V and excellent bias stress stability.
"Spatial ALD offers all the performance advantages of traditional ALD – superior control of layer thickness and composition, large-scale uniformity and unparalleled conformability – but at 10-100 times the speed. So a typical 50-nm thick layer can be produced within the standard 1 minute window demanded by today's industrial processes," said Paul Poodt, Program Manager sALD at Holst Centre.
"The performance of sALD means semiconductor layers could become much thinner, enabling even higher throughputs and lower material consumption," added Gerwin Gelinck, Program Director Flexible and Large Area Transistor Electronics at Holst Centre. "In fact, its performance characteristics are preserved even when scaling down the semiconductor thickness to less than 5 nm. This can lead to novel semiconductor structures, such as super-lattices, with even higher electron mobilities."
The Holst Centre team and partners are now taking steps towards the upscaling and commercialization of these sALD processes and related equipment.
Now Holst Centre has shown that sALD offers an industry-compatible alternative which improves display performance and at the same time could cut production costs. The team has used the technique to create semiconductor layers with charge carrier mobilities (a key measure of semiconductor performance) of 30 to 45 cm2/Vs. This compares to typical mobilities around 10 cm2/Vs for sputtering. The sALD layers also exhibited low off current, switch-on voltages around 0 V and excellent bias stress stability.
"Spatial ALD offers all the performance advantages of traditional ALD – superior control of layer thickness and composition, large-scale uniformity and unparalleled conformability – but at 10-100 times the speed. So a typical 50-nm thick layer can be produced within the standard 1 minute window demanded by today's industrial processes," said Paul Poodt, Program Manager sALD at Holst Centre.
"The performance of sALD means semiconductor layers could become much thinner, enabling even higher throughputs and lower material consumption," added Gerwin Gelinck, Program Director Flexible and Large Area Transistor Electronics at Holst Centre. "In fact, its performance characteristics are preserved even when scaling down the semiconductor thickness to less than 5 nm. This can lead to novel semiconductor structures, such as super-lattices, with even higher electron mobilities."
The Holst Centre team and partners are now taking steps towards the upscaling and commercialization of these sALD processes and related equipment.
Thursday, November 24, 2016
ALD For Industry kicking of the new year in Dresden
We are very happy for the interest from the ALD Equipment Suppliers and ALD Supplier Ecosystem to attend, present, exhibit and sponsor "ALD For Industry" kicking of the new ALD year 2017 in Dresden Germany 17-18th of January.
Herzlichen Dank Ihnen allen !!!
Exhibition & Sponsoring
Link to ALD fro Industry Program HERE
#ALD4Industry (follow in Twitter)
In an European context ALD was invented independently twice in Europe
(Russia & Finland) and since the last 15 years Germany has grown to
become one of the strongest European markets for ALD in R&D,
chemicals, equipment and end users. Here, Dresden and Saxony is a unique
ALD hotspot due to a strong semiconductor and equipment industry.
As you can see we have managed to put together a fantastic program with
representatives from the European ALD Equipment Industry : Picosun
(FIN), Beneq (FIN), Sentech (GER), FHR Anlagenbau (GER), Encapsulix
(FRA), ASM International (NL) and special guests from the USA -
Ultratech CNT!
In addition, representatives from the chemical industry (Air Liquide),
customers (Robert Bosch) and research institutions from Germany
(Fraunhofer) and Finland (Aalto University and VTT Finland) will make
invited and contributing talks. Topics will cover industrialization of
ALD beyond the semiconductor industry:
▪ MEMS & Sensors ▪ Display ▪ Lightning ▪ Barriers ▪ Photovoltaics
Please visit EFDS for all information for this event and how to register HERE!
Monday, November 21, 2016
Sub 7nm Metrology is tough
Why the semiconductor industry needs breakthroughs, and why it’s getting tougher to provide them.
November 21st, 2016 - By: Mark LaPedus
Can We Measure Next-Gen FinFETs? https://t.co/fGCjSJvwNW#Metrology #finFET #semiconductor #5nm #7nm pic.twitter.com/N26ojJal4T— Ed Sperling (@Chip_Insider) November 21, 2016
Saturday, November 19, 2016
Why is EUV so difficult and why should we ALD people care about that
Inspired by a recent article by Mark LaPedus, bad weather over Germany and coming back alive after a flue I had to return to my favorite ALD topic. As I remember it EUV was scheduled for insertion at 32 nm and has been pushed node by node ever since then. 10 years ago when I worked at the DRAM company Qimonda (RIP) I was on a small double patterning team and at that time I got my first insights into this exciting topic and I have followed it ever since. I would say that for an ALD process engineer the HKMG stack became boring once it came into production at 45 nm. 32/28 nm let´s tune the HIG source 2 degrees Zzzzzzz. Just make up you´re mind - should we go first or last? As we care.... joking aside the three big ones, Applied Materials, Lam Research and Tokyo Electron, all failed taking control of the ALD HKMG business and this was rightfully so conquered by ASMI with a good help from Finnish and Korean ALD Technology at its finest (Microchemistry and Genitech). With respect to EUV and ALD Enabled Pattering PEALD has become a key factor and may explain partially why ASM has been successful also in that field.
Ever since ALD became part of the patterning/litho community it just feels like we are taken much more serious than when we were stuck mainly playing around with funky materials from the periodic table. In short, multiple patterning and EUV is just so much cooler!
The situation now is that Samsung may start using EUV at 7 nm and the rest may wait until 5 nm. At least that is the current situation that I have from the last month of online media reports. That Samsung may be an early adopter for EUV maybe explained by that they have to also realize DRAM scaling sub 20 nm (more details in the article linked below).
In one sense skipping EUV has been a fantastic driver for double patterning and followed by quadruple patterning technologies realized by advanced etch processes and ALD liners. The single- and multiwafer ALD & PEALD equipment market and silicon precursor revenue volume has benefited enormously from this.
Self-aligned contact and via patterning is an established method for patterning multiple contacts or vias from a single lithographic feature. It makes use of the intersection of an enlarged feature resist mask and underlying trenches which are surrounded by a pre-patterned hardmask layer. This technique is used in DRAM cells and has been extended to patterning of active areas (see "Crossed self-aligned patterning"). It is also used for advanced logic to avoid multiple exposures of pitch-splitting contacts and vias [Wikipedia]
Self-aligned contact and via patterning is an established method for patterning multiple contacts or vias from a single lithographic feature. It makes use of the intersection of an enlarged feature resist mask and underlying trenches which are surrounded by a pre-patterned hardmask layer. This technique is used in DRAM cells and has been extended to patterning of active areas (see "Crossed self-aligned patterning"). It is also used for advanced logic to avoid multiple exposures of pitch-splitting contacts and vias [Wikipedia]
However, one thing that is difficult to realize with multiple patterning technology is hole patterns (described in the figure above) and here I don´t think about the regular den matrix used for e.g. DRAM cell arrays but the rather randomized pattern used for contact holes and BEOL vias. So even though you´re ALD biased at some point in time it could slow down scaling for interconnects and then that would also impact the ALD business.
So that is why it should be of interest for any ALD guy to closely follow and understand the EUV situation. Please find here some insights by Mark LaPedus at Semiconductor Engineering on what the EUV problem is all about and in great technical detail as well.
Also I can highly recommend the Wikipedia page on Multiple patterning which receives regular updates.
To inspire you even more just take time to read this excellent review by W.M.M. Kessels et al on ALD enabled pattering: "The use of atomic layer deposition in advanced nanopatterning", Nanoscale, 2014,6, 10941-10960, DOI: 10.1039/C4NR01954G. There is definitely more to come and just maybe those holes can be made by ALD as well.
To inspire you even more just take time to read this excellent review by W.M.M. Kessels et al on ALD enabled pattering: "The use of atomic layer deposition in advanced nanopatterning", Nanoscale, 2014,6, 10941-10960, DOI: 10.1039/C4NR01954G. There is definitely more to come and just maybe those holes can be made by ALD as well.
Tuning mechanical properties of ATO nanolaminates by ALD
ALD nanolaminates were first introduced in high volume manufacturing in Finland for TFEL-displays. Today even a see through version display is produced by Beneq (Lumineq). Nanolaminates have also found applications in optics by combining materials with a high difference in refractive index to tune optical properties. Also any ALD manufactured devices in the semiconductor industry can be regarded as an ALD nanolaminates like for instance the MIM stack in the DRAM capacitor cell for 90 nm and below or the HKMG stack used for transistors starting at 45 nm.
Since then, ALD nanolaminate barriers have also become technologically very important for highly flexible OLED (light-emitting diode) displays expected to go in production during 2017 for e.g. smart phone displays. Rumors in the industry say that both Samsung Electronics, LG Display and Chinese manufacturers are adopting ALD barrier production technology and that possible one of the next Iphones will have ALD barrier technology.
One of the mostly reported ALD barrier stacks consists of a repetition of a Al2O3/TiO2 bi-layer stack so called ATO nanolaminates or multilayers. These are employed to encapsulate the OLED from gas and water penetration otherwise killing the device. The key is to reduce the thickness drastically as compared to PVD or CVD barriers and thereby gaining flexibility while keeping the barrier properties for gas and water diffusion and therefore most importantly the barriers must also be pinhole free. Any pinhole will kill the diode and lead to a pixel failure. I´ve been told that a typical acceptance level for pixel failure for tablet sized displays is three (3!).
(Color online) Residual stress of the ATO nanolaminate as a function of the (a) ALD temperature, and (b) bilayer thickness. The error bars present the maximum measurement uncertainty as explained in Sec. II. © 2016 American Vacuum Society. Reproduced from J. Vac. Sci. Technol. A 35, 01B105 (2017); http://dx.doi.org/10.1116/1.4966198, with the permission of AIP Publishing and corresponding Author Oili M. E. Ylivaara.
Until today there are not too many published reports available on residual stress, adhesion and mechanical properties in ATO nanolaminates published. Please find below the link to the Open Source publication from researchers at VTT, University of Jyväskylä and Aalto University in Finland, systematically investigating those properties as dependence from bi-layer thickness and ALD process temperature as shown above and much more. Even though the focus in this study is not on barrier properties I think there is a lot to learn here for the OLED community, especially since you operate under relatively low process temperature conditions (<100C) you must have a lot of residual stress in those flexible barriers.
Besides this report, you can also find an earlier very nice poster from Riikka Puurunen here that focuses on tuning the electrical properties of ATO nanolaminates. All this work were performed in a Picosun SUNALE(TM) R-150 reactor.
Aluminum oxide/titanium dioxide nanolaminates grown by atomic layer deposition: Growth and mechanical properties
Oili M. E. Ylivaara,
Lauri Kilpi,
Xuwen Liu,
Sakari Sintonen,
Saima Ali,
Mikko Laitinen,
Jaakko Julin,
Eero Haimi,
Timo Sajavaara,
Harri Lipsanen,
Simo-Pekka Hannula,
Helena Ronkainen and
Riikka L. Puurunen
J. Vac. Sci. Technol. A 35, 01B105 (2017); http://dx.doi.org/10.1116/1.4966198
Thursday, November 17, 2016
Program Released - ALD for Industry, EFDS Workshop 17-18 January 2017, Dresden, Germany
Last week we released the program for the tutorials for the ALD for Industry, EFDS Workshop 17-18 January 2017, Dresden, Germany. Now we are very proud to release the full program for the Workshop the following day!
Link to ALD fro Industry Program HERE
#ALD4Industry (follow in Twitter)
In an European context ALD was invented independently twice in Europe (Russia & Finland) and since the last 15 years Germany has grown to become one of the strongest European markets for ALD in R&D, chemicals, equipment and end users. Here, Dresden and Saxony is a unique ALD hotspot due to a strong semiconductor and equipment industry.
As you can see we have managed to put together a fantastic program with representatives from the European ALD Equipment Industry : Picosun (FIN), Beneq (FIN), Sentech (GER), FHR Anlagenbau (GER), Encapsulix (FRA), ASM International (NL) and special guests from the USA - Ultratech CNT!
In addition, representatives from the chemical industry (Air Liquide), customers (Robert Bosch) and research institutions from Germany (Fraunhofer) and Finland (Aalto University and VTT Finland) will make invited and contributing talks. Topics will cover industrialization of ALD beyond the semiconductor industry:
▪ MEMS & Sensors ▪ Display ▪ Lightning ▪ Barriers ▪ Photovoltaics
Please visit EFDS for all information for this event and how to register HERE!
Workshop - Wednesday, January 18, 2017
09:00 Welcome to ALD for IndustryDr. Sven Richter, Dr. Jonas Sundqvist, Dr. Christoph Hossbach EFDS & ALD Lab Saxony
09:20 ALD/MLD of flexible inoganic-organic hybrid thin films towards future energy harvesting and storage technologies
Prof. Maarit Karppinen; Department of Chemistry, School of Chemical Technology, Aalto University, Finland
10:00 ALD technology for the continuation of Moore’s law
Dr. Harald Profijt; Corporate R&D, ASM International, Netherlands
10:30 ALD for Life Science Applications
Dr. Ganesh Sundaram; Ultratech, Cambridge Nanotech, USA
10:50 Coffee Break
11:20 Solid precursors for ALD: challenges and opportunities
Dr. Nicolas Blasco; Air Liquide, France
11:40 ALD for optics
Dr. Adriana Szeghalmi; Friedrich-Schiller-Universität Jena, Institute of Applied Physics, Germany
12:00 Opportunities, challenges and solutions for ALD thin-film encapsulation in flexible electronics applications
Dr. Mikko Söderlund; Beneq Oy., Finland
12:20 Lunch Break
13:20 Industrial deployment of nano-engineered ultrabarriers for encapsulation of organic electronics
Dr. Jacques Kools; Encapsulix S.A., France
13:40 ALD applications in MEMS manufacturing
Dr. Florian Schön; Robert Bosch GmbH, Germany
14:00 ALD and 3D coatings
Dr. Tero Pilvi; Picosun Oy., Finland
14:20 Thin films in 3D structures: metrology with microscopic lateral high-aspect-ratio structures
Mikko Utriainen; VTT Technical Research Centre of Finland Ltd., Finland
14:40 Coffee Break
15:00 Where no man has gone before - unique equipment enables unique research
Dr. Hannes Klumbies; FHR Anlagenbau, Germany
15:20 ALD systems for no damage, high uniformity and stability of multilayer deposition
Dr. Hassan Gargouri; SENTECH Instruments GmbH, Germany
15:40 ALD process optimization by equipment simulation
Dr. Jörg Schuster; Fraunhofer ENAS, Germany
16:00 Closing remarks and discussion
Dr. Sven Richter, Dr. Jonas Sundqvist, Dr. Christoph Hossbach
EFDS & ALD Lab Saxony
16:20 End of Workshop Day
Wednesday, November 16, 2016
Oxford Instruments Plasma Technology free webinars
Oxford Instruments Plasma Technology has a new media centre that has just gone live, allowing you unlimited access to their on-demand webinars, videos and more!
The two most recent webinars:
Growth and Characterisation of 2D Materials Beyond Graphene
Dr Ravi Sundaram, Oxford Instruments & Dr Tim Batten, Renishaw
SiC Via Etching for RF Devices
Oxford Instruments Plasma Technology
The two most recent webinars:
Growth and Characterisation of 2D Materials Beyond Graphene
Dr Ravi Sundaram, Oxford Instruments & Dr Tim Batten, Renishaw
SiC Via Etching for RF Devices
Oxford Instruments Plasma Technology
Lam Research Tech brief on Atomic Layer Etching - ALE
Lam Research has just published a great Tech Brief covering Atomic Layer Etching on their Blog (Tech Brief: All About ALE ). Thanks Terry Francis for sharing this one!
The article covers the following:
- Plasma Etch Basics
- Plasma Etch Challenges
- Atomic Layer Etching
- Benefits of ALE
- Growing Need for ALE
References
- Moving Atomic Layer Etch from Lab to Fab (Solid State Technology, 2013)
- Overview of Atomic Layer Etching in the Semiconductor Industry (J. Vac. Sci. Technol. A, 2015)
- Lam Research – Engineering at the Atomic Scale (video)
How do atomic-level processing techniques like #ALE make advanced chips possible? More on our blog: https://t.co/QVASFvgLfZ pic.twitter.com/oy8Qb4nSS2— LamResearch (@LamResearch) November 14, 2016
Tuesday, November 15, 2016
Special Issue: Atomic Layer Deposition for Energy and Environmental Applications
Here is a Special issue in Advanced Materials Interfaces: Atomic Layer Deposition for Energy and Environmental Applications LINK. The issue is guest edited by Neil P. Dasgupta, Liang Li, and Xueliang Sun.
The ALD Energy and Environment special issue has 11 invited research articles and 5 review articles from leading ALD experts. The focus is on the following applications:
The ALD Energy and Environment special issue has 11 invited research articles and 5 review articles from leading ALD experts. The focus is on the following applications:
- photo-voltaics
- batteries
- supercapacitors
- photoelectrochemical cells
- transparent electrodes
- sensors
- environmental barrier layers.

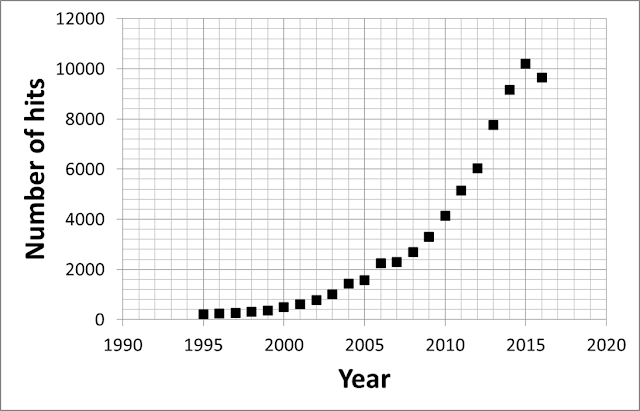

Google Scholar year by year for "atomic layer deposition" AND energy. Obviously energy can also be used for binding energy etc. but I think the message is clear.
Special issue in Advanced Materials Interfaces: Atomic Layer Deposition for #Energy and #Environmental Applications https://t.co/MMgAHFvQNO pic.twitter.com/DvmkqPoXsZ— Wiley Materials (@materialsviews) November 8, 2016
Monday, November 14, 2016
Tutorial on Fast Spatial Atmospheric ALD by David Muñoz-Rojas from LMGP-CNRS
We are happy that Dr. David Muñoz-Rojas from LMGP-CNRS, Grenoble will come to Dresden in January 17th 2017 to give a Tutorial at ALD for Industry on Spatial ALD "Speeding up the unique assets of ALD". Until then please enjoy this recent presentation available on Youtube - pretty amazing stuff!
Dr. David Muñoz-Rojas - Laboratoire des Matériaux et du Génie Physique
(LMGP) Université Grenoble Alpes, Grenoble, France - presents a Waterloo
Institute for Nanotechnology (WIN) seminar titled: "Atmospheric
Pressure Spatial Atomic Layer Deposition (AP-SALD): a new technique
allowing the fast and scalable “printing” of functional oxides" (Embedded Youtube)
Aalto University present light detector with record-high sensitivity that may revolutionize imaging
Aalto University has presented a new light detector with record-high sensitivity that may revolutionize imaging. The research team led by Prof. Hele Savin claim that that the new light detector can capture more than 96 % of the incoming photons from visible, ultraviolet through to infrared wavelengths. The key feature is a nanostructured antireflection without limitation to specific wavelengthe or incident angle.
You probably guessed it by now - yes the new detector uses ALD - an inversion layer deposited by ALD.
"We also addressed electrical losses present in traditional sensors that utilize semiconductor pn-junctions for light collection. Our detector does not need any dopants to collect light - instead we use an inversion layer generated by atomic layer deposited thin film."
Read more at: http://phys.org/news/2016-11-detector-record-high-sensitivity-revolutionize-imaging.html#jCp
Read more at: http://phys.org/news/2016-11-detector-record-high-sensitivity-revolutionize-imaging.html#jCp
"We also addressed electrical losses present in traditional sensors that utilize semiconductor pn-junctions for light collection. Our detector does not need any dopants to collect light - instead we use an inversion layer generated by atomic layer deposited thin film."
Read more at: http://phys.org/news/2016-11-detector-record-high-sensitivity-revolutionize-imaging.html#jCp
Read more at: http://phys.org/news/2016-11-detector-record-high-sensitivity-revolutionize-imaging.html#jCp
Read more in this news release by Aalto University : LINK
Light detector with record-high sensitivity made by #Aalto researchers to revolutionize imaging https://t.co/td0ueNHcHR #nanotechnology pic.twitter.com/zVnlvgzlC3— Aalto University (@AaltoUniversity) November 14, 2016
The Plasma ALD Guy presented the latest PEALD statistcs at AVS 63 in Nashville
The Mysterious Plasma ALD Guy presented the latest PEALD statistcs at AVS 63 in Nashville:
— Plasma-ALD-Guy (@PlasmaALDGuy) November 10, 2016
Saturday, November 12, 2016
Tutorials on Atomic Layer Deposition in Dresden Jan 17, 2017
ALD Lab Saxony, IHM TU Dresden, Fraunhofer IKTS and EFDS invites you to visit Dresden January 17-18 to learn the latest in ALD processing, technology and applications as part of the EFDS ALD for Industry Workshop. After the tutorials there will be an opportunity to visit ALD labs and clean rooms at the Technical University Dresden (IHM and NaMLab) and Fraunhofer Institute for Ceramic Technologies and Systems IKTS.
The 2nd day will be the main workshop day with invited talks from leading researchers and industry experts on the broad range of topics. The workshop will focus on non-Semiconductor industrial applications of today and the emerging markets with an expected industrialization in the next 5 years. Presentations will focus on the latest topics and the state of the art in the field of Atomic Layer Deposition. In parallel there will be an exhibition, giving great opportunities for face to face meetings and to share product information. The workshop will provide an excellent platform for discussions and networking during the program as well as during the social events.
More information will follow!
Tutorial - Tuesday, January 17, 2017
12:30 Introduction and fundamentals of ALDProf. Johann W. Bartha; IHM, TU Dresden, Germany
13:00 ALD of metals
Dr. Colin Georgi; Fraunhofer ENAS, Germany
13:30 Overview of ALD equipment and technologies
Dr. Christoph Hossbach; IHM, TU Dresden, Germany
14:00 Coffee Break
14:30 Speeding up the unique assets of ALD
Dr. David Muñoz-Rojas; LMGP-CNRS, Grenoble
15:00 In situ metrology techniques in ALD
Marcel Junige; IHM, TU Dresden, Germany
15:30 ALD applications, equipment and precursor market outlook 2017 to 2020
Dr. Jonas Sundqvist; Fraunhofer IKTS, Germany / Techcet LLC, USA
Welcome to Dresden from ALD Lab Saxony!
Friday, November 11, 2016
Abstract submission is now open for the joint EuroCVD 21 - Baltic ALD 15 meeting in Linkoping, Sweden (June, 2017)
Abstract submission is now open for the joint EuroCVD 21 - Baltic ALD 15 meeting in Linkoping, Sweden (June, 2017):
The abstract will consist of two parts: the extended abstract and the summary:
1.The extended abstract can be up to 2 A4 pages, and must follow the extended abstract template available below for download. Please download the template here (Word .docx format). Save the completed extended abstract as a .pdf for submission. Note: only .pdf files will be accepted in the online submission process.
2.The summary will be maximum 1600 character overview of the extended abstract. This should be written in as plain text as possible, with no references or figures. This summary will be pasted into a text submission box during the submission procedure.
Abstract submission closes on January 10, 2017 by midnight GMT. All abstracts should be submitted by this date. Authors will be notified of acceptance of their contributions and the type of presentation (oral or poster) by February 10, 2017.
It is important to note that the authors are solely responsible copy-editing and formatting their abstract documents. The accepted abstracts will be published as received, and any errors in formatting, spelling, grammar, or scientific content will not be corrected. If you have any technical difficulties with the submission process, please contact the organizing committee at cvdald17.abstract@meetagain.se. Other questions about the conference can be directed to henrik.pedersen@liu.se.
The scientific committee will vet the submitted abstracts, and notify the submitting author about the acceptance decision. Accepted abstracts will further be assigned as an oral or poster presentation according to the scientific committee’s decision. The two page abstract will appear in an electronic collection of abstracts distributed to the conference attendees during registration. The 1600-character summary will be published in the conference booklet. Publication of both the extended abstract and summary is contingent on registration of the submitting author.
Presenters will be notified about the scientific committee's decision by email.
Abstract Submission
Abstracts will only be accepted though the online abstract submission system, which will be available on November 10, 2016. The deadline for submission is January 10, 2017.The abstract will consist of two parts: the extended abstract and the summary:
1.The extended abstract can be up to 2 A4 pages, and must follow the extended abstract template available below for download. Please download the template here (Word .docx format). Save the completed extended abstract as a .pdf for submission. Note: only .pdf files will be accepted in the online submission process.
2.The summary will be maximum 1600 character overview of the extended abstract. This should be written in as plain text as possible, with no references or figures. This summary will be pasted into a text submission box during the submission procedure.
Abstract submission closes on January 10, 2017 by midnight GMT. All abstracts should be submitted by this date. Authors will be notified of acceptance of their contributions and the type of presentation (oral or poster) by February 10, 2017.
It is important to note that the authors are solely responsible copy-editing and formatting their abstract documents. The accepted abstracts will be published as received, and any errors in formatting, spelling, grammar, or scientific content will not be corrected. If you have any technical difficulties with the submission process, please contact the organizing committee at cvdald17.abstract@meetagain.se. Other questions about the conference can be directed to henrik.pedersen@liu.se.
The scientific committee will vet the submitted abstracts, and notify the submitting author about the acceptance decision. Accepted abstracts will further be assigned as an oral or poster presentation according to the scientific committee’s decision. The two page abstract will appear in an electronic collection of abstracts distributed to the conference attendees during registration. The 1600-character summary will be published in the conference booklet. Publication of both the extended abstract and summary is contingent on registration of the submitting author.
Presenters will be notified about the scientific committee's decision by email.
New Al2O3/MgO ALD laminates for encapsulation flexible OLEDs
Fleixible OLEDs that we all need for our next generation smartphones, tablets and wearbles are very vulnerable to contamination from the air that surrounds us and especially moisture. China is really taking on OLED high volume production and now researchers from South China University of Technology - SCUT
have developed a new material stack for OLEDs
based on a low temperature ALD process that decreases the diffusion of water vapour the
OLED device by an order of magnitude.
Anna Demming at Nanotech.Org has interviewed the Lei Ying, an
SCUT researcher and he claims that “No one has used MgO for OLED encapsulation before” and accoring to him MgO
has a number of advantages:
- a low refractive index giving high transmittance
- wide bandgap
- high dielectric constant
- high chemical stability
- lack of UV irradiation treatment requirements.
- cheap and commercially available
Accoring to the scientiffic report below the researchers uses an MgO ALD process from Mg(CpMe)2 and H2O at 80 °C since the more commonly used Mg(CpEt)2 is much more expensive than the Mg(CpMe)2 . The ALD depositions were carried out in a BENEQ TFS500 reactor.
BENEQ Thin Film System TFS 500 for ALD research and batch production (beneq.com)
The laminated Al2O3/MgO films improve the reliability of thin film encapsulationand can realize a barrier film with high density, which achieves a superior WVTR as low as 4.6 × 10−6 gm–2/day and passes storability, without any visible black spot growth under testing conditions (temperature = 60 °C, humidity = 100%) for 600 h.
Please read the interview here and study the additional materials including a movie on OLED aging testing.
